Descrição

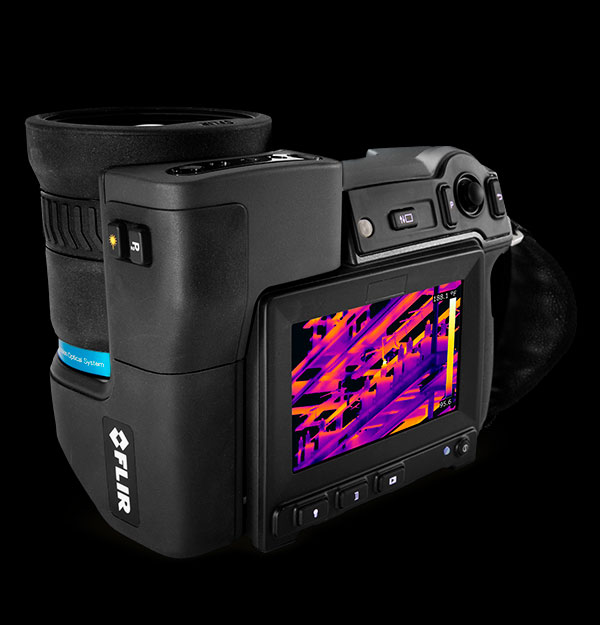

The FLIR T1010 is your entry to the world of outstanding thermal imaging performance. With up to 3.1 MP resolution (UltraMax®), superior thermal sensitivity, and FLIR’s most advanced user interface, the T1010 is designed to streamline your workday, and make you the hero.
HD RESOLUTION, WIDE TEMPERATURE RANGE
The T1010 records 1024 × 768 true HD resolution images, with thermal measurements up to 650°C (1202°F).
EXPERT FEATURES
With programmable buttons, an agile GUI, and live image enhancements such as 1-Touch Level/Span, the T1010 has the expert features you need.
COMPACT AND EASY TO USE
The T1010 has a robust yet compact frame with a 120° rotating optical block that puts any target within comfortable viewing range.
Outstanding Image Clarity
The T1010 uses the power of FLIR Vision Processing™ to deliver detailed, smooth pictures with very little image noise. FLIR Vision Processing combines HD resolution, MSX®, and UltraMax® image enhancement with FLIR’s proprietary adaptive filtering algorithms to produce brilliant thermal images with up to 3.1 million pixels. Plus, the T1010 is sensitive enough to detect temperature differences down to <20 mK, for clear, low-noise results that keep you from missing any potential issues during inspections.
SPECIFICATIONS
OVERVIEW
- Built-in Digital Camera
- 5 Mpixel with LED light
- Color alarm (isotherm)
- No
- Compass
- No
- Detector Type
- Focal plane array (FPA), uncooled microbolometer
- Difference Temperature
- Delta temperature between the measurement functions and the reference temperature
- Focal Length
- 36 mm (1.42 in)
- Housing material
- Magnesium
- IR Resolution
- 1024 × 768; up to 3.1 MP with UltraMax
- Languages
- Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish
- Laser
- Activated by a dedicated button
- Laser Alignment
- Position is automatically displayed on the infrared image
- Laser Classification
- Class 2
- Laser Type
- Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)
- Profile
- No
- Set-up Commands
- Save options, programmable button, reset options, set-up camera, language, time & units, camera information
- Spectral Range
- 7.5–14 µm
- Tripod Mounting
- UNC ¼”-20
- Weight
- 1.9 kg (4.3 lb)
- GPS [compass]
- No
- Optional Lenses
- 7°, 12°, 45°, and 3x close-up lenses
- Text
- No
- Time Lapse
- No
- User Presets
- The user can select and combine measurements from one box and one delta
- Voice
- No
